I am trying to get my top fuselage to fit to the bottom. This is a necessity for
most before bonding it on, but since I need to incorporate a Hi-top mod, it
is even more important to get it right before I start cutting it into pieces.
I find that even with the front flanges aligned to those in the firewall, and
the
trimline on the back of the tail lined up with the end of the fuselage, I still

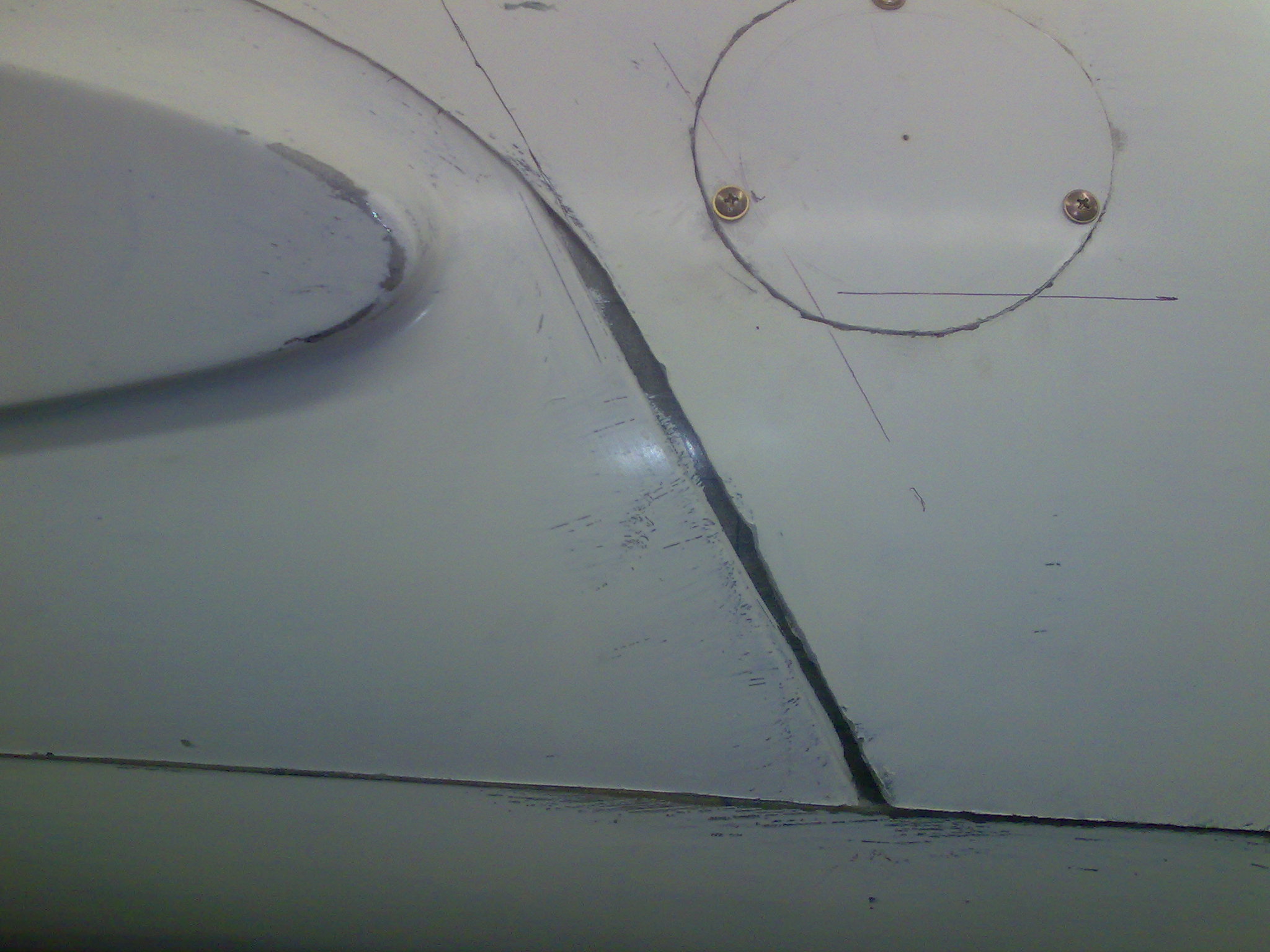

have a gap at the rear flanges of 9-10 mm (see attached). If I then raise
the front fuselage as per mod 64B it only gets worse, with some 11mm at the
bottom.
Is this normal? If not, what can I do about it?
Suggestions welcome, Jeroen
Read this topic online here:
http://forums.matronics.com/viewtopic.php?p=312941#312941
Attachments:
http://forums.matronics.com//files/19092010483_727.jpg
|
