Hello all,
I received a 3D printer for Christmas and wanted to try and create parts with
it.
I was in the process of cutting the relief out of B16 for the brakes and wanted
to test it on a model before I boogered up the actual part.
I took the measurements in put them into turbocad. Never used a CAD program
before
but found youtube videos helpful in the process.
>From there I use the 3D printer software to convert the file into something the

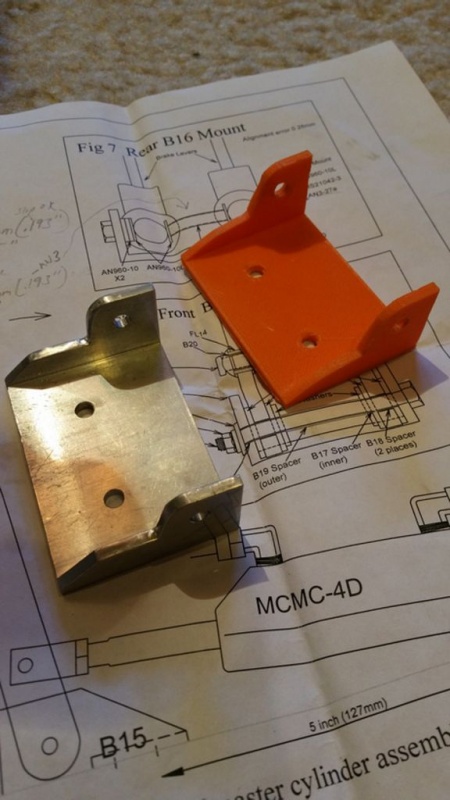

printer could understand and printed it out. Once printed I made the cuts to
get an idea of what I needed to do on the actual part. I have posted the STL
file on if you want it.
[img]http://europaowners.org/main.php?g2_view=core.DownloadItem&g2_itemId=759813&g2_serialNumber=2[/img]
--------
Kyle
Europa Tri-gear (under construction)
